How to Achieve the Ultimate IPA Purity with Less than 100ppm Water?

Is there anything more challenging than meeting an IPA purity demand of 99.99% when you’re dealing with a feedstock with 1000ppm water? Probably not, but if there’s a way, it’s through tailor-made dehydration solutions! Here at Greatwall Process and Control, we specialize in delivering those “impossible” results with top-quality, customized equipment solutions.

Getting dehydrated IPA with under 100ppm water is like searching for a needle in a haystack if you don’t have the right tools. The problem isn’t just about drying, it’s about optimizing every drop.

With the project experience at dehydrating the ppm solution, we’ve seen a whole spectrum of IPA dehydration challenges and, well, we’ve got some stories to tell! Today, I am going to break down the ultimate solution for IPA dehydration that will take your purity level to 99.99%. Ready to join me on this journey?

What Exactly is the Challenge in Dehydrating IPA to Less than 100ppm Water?

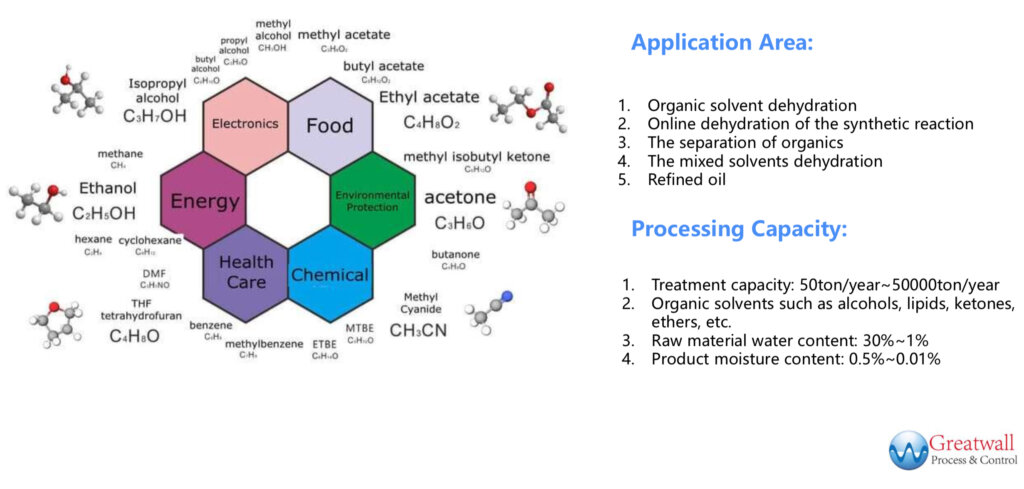

IPA (Isopropyl Alcohol) is an indispensable solvent used across various industries, including pharmaceuticals, electronics, and coatings. However, one common requirement emerges: purity. Most processes need IPA with water content well below 150ppm, often under 100ppm, to ensure product quality, prevent corrosion, and enhance end-use effectiveness.

The typical challenge is the presence of azeotropes—IPA forms an azeotrope with water, which makes it complicated to separate water beyond certain levels by distillation alone. Traditional methods hit a ceiling where water content just can’t drop any lower. This is where modern, advanced dehydration methods like molecular sieve technology come into play.

So, What Makes Our Approach Stand Out?

It’s all about customization. Off-the-shelf solutions rarely meet precise needs, and every production line is a bit unique, even if the goal is the same—pure, dry IPA. The equipment that we work with is flexible, modular, and specially engineered and designed based on practical production needs—that’s what makes our solution truly “ultimate.”

In addition to that, we provide end-to-end project services: from consultation, process flow analysis, and engineering design to manufacturing and on-site support—each step is backed by our extensive expertise in molecular sieve pervaporation dehydration technologies.

Why Can’t We Just Distill it Again and Again?

Here comes the challenge of IPA-water azeotropes. Azeotropes are like the stubborn friend at a party—no matter what you do, they just won’t leave unless you bring in some external force. In IPA dehydration, that force is our specialized zeolite molecular sieve pervaporation technology. Unlike conventional distillation, which becomes energy-intensive and inefficient near the azeotropic point, a zeolite-based membrane component selectively adsorbs water to achieve that highly pure IPA.

Here’s an interesting fact: According to recent studies, zeolite are one of the most effective ways to reach ultra-high purities in alcohol-based solvents. Their efficiency stems from their porous structure, which can selectively sieve out molecules based on size and shape—effectively targeting water while leaving IPA untouched.

Why Choose Molecular Sieves over Other Technologies?

1. Efficiency at Low Energy Input

Molecular sieve membrane systems are particularly energy-efficient compared to methods like RO membrane separation or chemical drying agents. Pervaporation technology provides a balance between cost, efficiency, and safety. The use of a tailored adsorption system ensures optimal drying without the escalating costs associated with repeated distillation.

2. Easy Integration

The technology can be added to existing production lines with minimal modifications. Whether it’s pharmaceutical-grade IPA or IPA for electronic cleaning applications, the system’s modular design makes it adaptable.

3. Customizability and Reliability

With the molecular sieve membrane systems we provide, you’re not getting a “one-size-fits-all” product—we work closely with clients to adapt and optimize according to specific production needs and constraints. A detailed engineering analysis is done to ensure the solution fits seamlessly with your operational framework.

The Ultimate Solution: Zeolite Pervaporation Membrane Dehydration System for IPA

2m³/d Isopropyl Alcohol (IPA) (99.9%-99.99%)

Introduction

The proposed typical solution is specially designed to efficiently address your specific needs for the dehydration of Isopropyl Alcohol (IPA). Leveraging the latest advancements in zeolite pervaporation membrane technology, this system offers a highly efficient, energy-saving, and low-maintenance approach to solvent dehydration, providing consistent performance and high product purity.

The following solution outlines the technical philosophy, key features, feed stream quality, design specifications, process flow, utility consumption, system components, quality warranty, and commissioning regulations for comprehensive review and assessment.

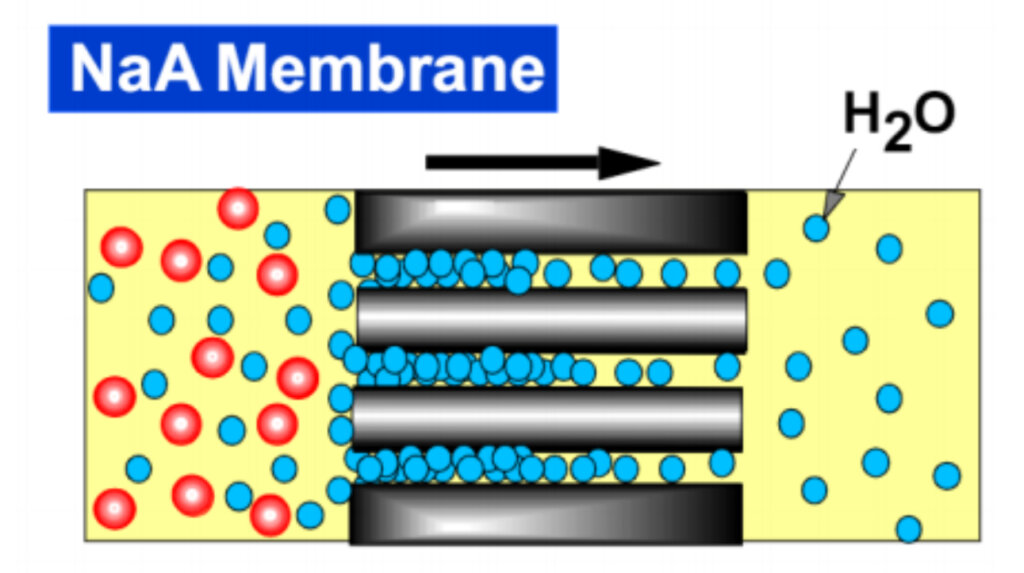

1. Technical Philosophy

The zeolite pervaporation membrane system operates on a specially fabricated membrane that synthesizes a uniform layer of molecular sieve crystals on a ceramic support. The molecular sieve possesses a highly ordered channel structure, allowing selective separation based on molecular size differences. The NaA-type molecular sieve membrane is particularly effective at separating water from organic solvents, with a pore size of 0.41 nm, ideal for allowing water molecules (0.29 nm) to pass while retaining larger organic molecules.

This system leverages the molecular sieve’s high hydrophilicity, facilitated by its high aluminum content (Si/Al = 1), which preferentially adsorbs water molecules. The membrane separates water from the solvent vapor by exploiting the vapor pressure differential across the membrane, driving water molecules through while maintaining the integrity of the organic solvent.

2. Key Features of the Zeolite Pervaporation Membrane Technology

• Safe and Efficient: Customizable membrane area ensures optimal solvent dehydration under low temperature and pressure, within fully sealed membrane modules.
• Energy Saving: Reduces energy consumption by over 2/3 compared to conventional methods.
• Simple Operation: Fully automated production process requiring minimal manual intervention. The system is monitored and controlled by automatic instruments for unattended operation.
• High Product Purity: The system achieves high solvent purity without introducing third components (e.g., azeotropic agents), making it ideal for high-quality requirements in industries such as pharmaceuticals, chemicals, and electronics.
• High Recovery Rate: Recovery rates of 98%-99.5% can be achieved. The system can be integrated with other technologies for zero-emission results.
• Compact Design: The equipment is compact and occupies minimal floor space, reducing capital investment in infrastructure.
• Long Membrane Life: Membranes have a life expectancy of over 5 years, lowering maintenance costs.
• Process Flexibility: Can be integrated with other processes or chemical reactions for enhanced operational flexibility.

3. Feed Stream Quality Requirements

To ensure the effective operation and longevity of the zeolite membrane, strict regulation of the feed stream is essential to prevent potential contamination or membrane fouling.

Client Feed Information:

Feed Stream Requirements for Membrane System

• Water Content Requirement / wt%: ≤1
• pH Range Requirement: 6.5-8.5
• Conductivity Requirement (uS/cm): ≤5
• Post-Evaporation Quality or Gas Chromatography Component Requirements:
  • No Residue: The feed must be free of any residues after evaporation.
  • No Discoloration: The evaporated material should not display any color change.
  • No Contaminants: The feed should not contain pigments, salts, sugars, solid particles, colloids, or acidic/alkaline components that may potentially contaminate or damage the equipment and membrane materials.

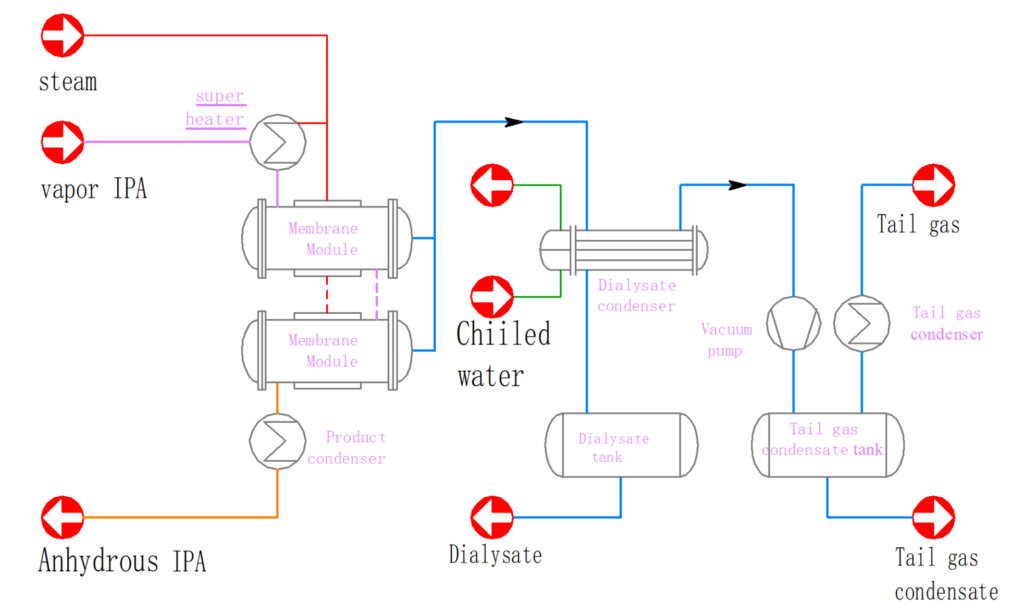

4. Process Flow

The proposed system design ensures efficient and continuous dehydration of IPA with a water content of approximately 0.1 wt%. The solvent feed is preheated and vaporized at temperatures between 110-120°C before entering a series of membrane modules arranged in sequence. Each module is equipped with a heating jacket to compensate for heat loss during the dehydration process.

Water is selectively adsorbed by the membrane and removed under vacuum pressure. The final output from the last membrane module achieves a water content of less than 0.01 wt%. The solvent vapor is condensed and directed to a storage tank. Water, separated by the vacuum system, is condensed and collected in the permeate tank before being either discarded or recycled as required.

5. System Configuration for Utility Consumption

The utility consumption is minimal due to the efficiency of the system. Electricity, steam, and chilling media are used to maintain operating conditions, keeping the process stable and efficient while minimizing operational costs.

6. System Components and Features

The system is composed of several critical components, including membrane assemblies, feed pumps, evaporators, condensers, and control systems. Each component is designed with durability and ease of maintenance in mind, ensuring reliable operation for years.

7. Installation, Commissioning, and After-Sales Service Agreement

• Installation: The client is responsible for on-site equipment installation, while we provide guidance and oversee commissioning.
• Commissioning: We ensure the system is up and running smoothly and will be fully operational as per the agreed specifications.
• After-Sales Service: We offer a quality guarantee and fast response for any faults or issues that arise during operation.

Is a Molecular Sieve System Cost-Effective?

Absolutely! Compared to distillation, which demands high energy inputs and becomes inefficient near azeotropic points, molecular sieves offer a more predictable cost structure. Besides the initial investment, ongoing operational costs are lower since there’s minimal need for heating large volumes of IPA or carrying out multiple distillation cycles. In fact, a well-designed system will offer ROI within just a few production cycles.

How Do We Ensure Consistent Performance?

IPA purity requirements are unforgiving—consistency is key. We make sure that every system that goes out has been fully tested and sealed with commissioning performance. It’s not enough to simply achieve purity in the lab—we need to ensure that when installed, the system can cope with real flow rates, temperatures, and unexpected variations.

From using robust, corrosion-resistant materials to implementing an automated control system that optimizes each drying cycle unattended running—every detail is covered. The molecular sieve modules, for example, are designed for durability, to withstand the pressures and temperatures involved in IPA dehydration without losing efficiency over time.

1) Membrane Performance

The proprietary zeolite membranes exhibit a flux rate of ≥10,000 g/m²·h (under ethanol dehydration at 105°C with 10% water content in liquid phase). The separation factor exceeds 10,000, providing over 20% higher performance compared to competitors. A 30% design surplus in membrane area ensures operational flexibility and long-term stable performance.

2) Membrane Module Heating

Each membrane module features either jacketed heating or intermediate heat exchangers to maintain a constant working temperature, preventing vapor condensation inside the module and extending membrane life.

3) Custom Evaporator Design

The evaporator is specifically designed to accommodate the material properties and prevent fouling, ensuring long-term stable operation without the risk of membrane contamination.

4) Dehydration Process Visualization

The system includes sight glasses in the permeate condenser piping, allowing operators to visually inspect the condensate during continuous operation, ensuring there are no abnormalities.

5) Automatic Permeate Discharge

The permeate, collected under high vacuum, is automatically discharged without the need to disrupt the vacuum, improving operational stability and simplifying process control.

The control system utilizes a Siemens PLC with Schneider components, ensuring reliable and safe operation. It includes a DCS communication interface for remote monitoring, allowing for unmanned operation.

• Automated Monitoring: The system automatically monitors all control points and adjusts parameters when necessary (e.g., lowering temperature or pressure, halting feed intake, cutting off heat sources) and provides visual and auditory alerts in the event of an issue.

• Alarms and Safeguards: The PLC interface displays the cause of the alarm, and in most cases, the system will automatically correct itself. For severe issues, such as overheating or high-pressure alarms, manual intervention will be required before restarting.

• Interlock Controls: Safety sensors and interlock controls throughout the system ensure safe operation, with automatic shutdown and notification in the event of mechanical failure.

FAQs on IPA Dehydration

1. What is the maximum flow rate for a molecular sieve dehydration system?

It depends on your specific requirements. we can customize the system for both pilot-scale and large-scale operations.

2. How long does the regeneration process take?

Typically, the membrane can not be regenerated, but we provide membrane replacement solution commonly after working period ranging from 2-5 years, depending on the system’s size, working condition and configuration.

3. How does azeotrope formation affect IPA recovery?

Azeotropes make it hard to remove water beyond certain levels through distillation alone, which is why zeolite molecular sieve systems are crucial.

4. How do you maintain optimal vacuum conditions during working?

The vacuum working relies on both robust and proper vacuum pumps. Maintaining consistent vacuum conditions is crucial for stable zeolites pervaporation and separation efficiently.

5. Are molecular sieve systems safe?

Absolutely. They’re enclosed, automated, and come with multiple fail-safe systems.

6. What industries need 99.99% pure IPA?

Primarily pharmaceutical and electronics industries need such high-purity IPA to avoid contamination.

7. Can molecular sieves be used for other alcohols?

Yes, they are versatile and can be used for ethanol, methanol, and more. Find out more about alcohol dehydration.

8. What should I consider when choosing an IPA dehydration solution?

You need to consider your required throughput, available utilities (heat, vacuum), and the final purity level you need.

More Related Questions

• How does a molecular sieve compare with other dehydration technologies?
• Can dehydration efficiency be improved with hybrid solutions?
• What are the best materials for molecular sieve construction?
• How do external environmental factors affect IPA dehydration?
• How does molecular sieve technology reduce operational costs?

Conclusion

Achieving ultimate IPA purity may seem like a monumental task, but with the right approach and tailor-made solutions, it’s absolutely within reach. With our molecular sieve technology, you not only overcome the challenges of azeotrope formation, but you do so in an efficient and cost-effective manner.

Ready to discuss your specific needs? Let’s talk about how we can make high-purity IPA a reality for your process!
