Our Services

We are committed to providing solutions that are environmentally friendly, energy-efficient, safe and effective. Our process solutions and services are specifically tailored to our customers' production technologies and practical requirements.

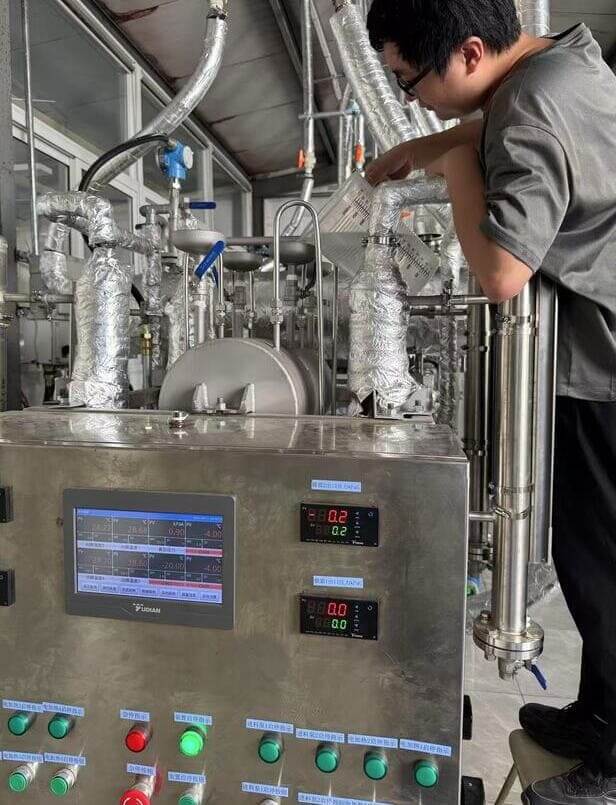

membrane pervaporation lab testing process
Lab.& Pilot Plant Testing

With a small number of samples, we will be able to perform laboratory and pilot scale testing and process determination to verify technology selection and optimize the final solution for targeted commercial production.

Check the Demo Here
contact us picture
Customized Solutions and Services

We are proposing solutions based on your process production information and designing the process according to your actual working conditions. The optimized solution will be secured to save operation costs, increase the yield and save labor cost.

Share Your URS Here
roots screw vacuum pump
On-site Technical Support

Timely after-sales services are available online and on-site to support customer’s installation, commissioning, testing, and start-up operations. provide trainings on the equipment structure and process flow to operators for correct and professional operations.

Appointment Here

Lab & Pilot Testing Service

Scale‑up & design verification for solvent dehydration and marine deep‑sea fish oil / Omega‑3 concentration

De‑risk your investment before you buy a full production line. Our lab and pilot programs generate hard data, confirm product specs, and translate results into a scoped process package for your site.

What we test

Solvent Dehydration & Recovery

Typical systems: pervaporation/zeolite membrane skids (hybrid with rectification), molecular sieves, and azeotrope‑breaking configurations for ethanol, IPA, acetone, THF, acetonitrile, Methanol, and related solvent blends.

  • Typical objectives: 95–99.9% dryness(200ppm-minimal 100ppm）; USP‑grade ethanol targets; energy and utility benchmarking; solvent loss minimization.
  • Analytics: Karl Fischer, GC, density/RI, pH/conductivity, residue/impurity profile.

Request a Test

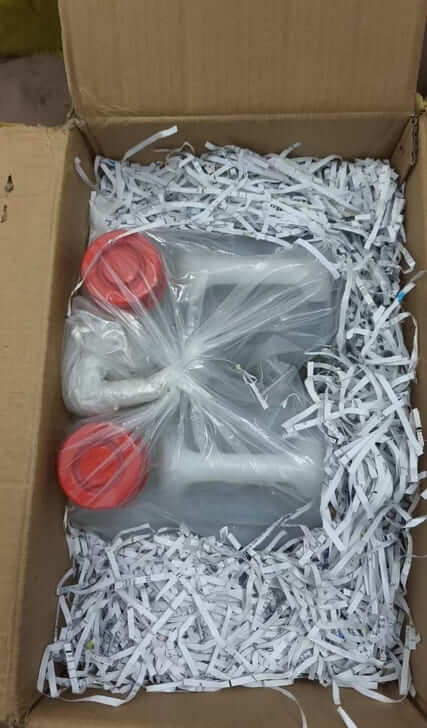

arrival picture of sample material package for pervaporation dehydration
marine fish oil gc testing optimize production efficiency

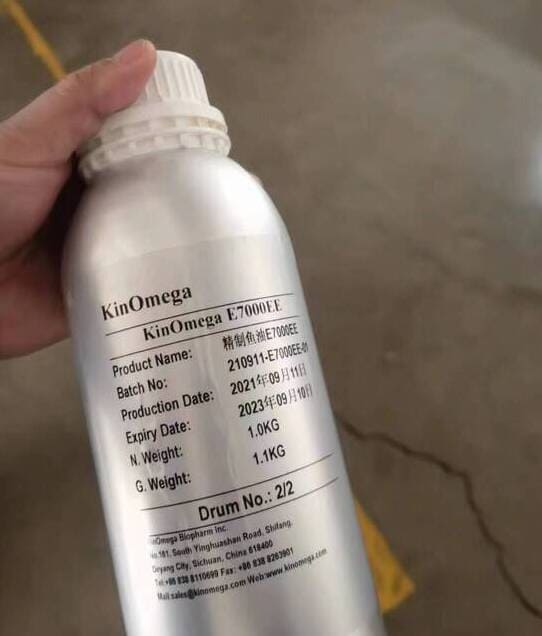

fish oil sample material package

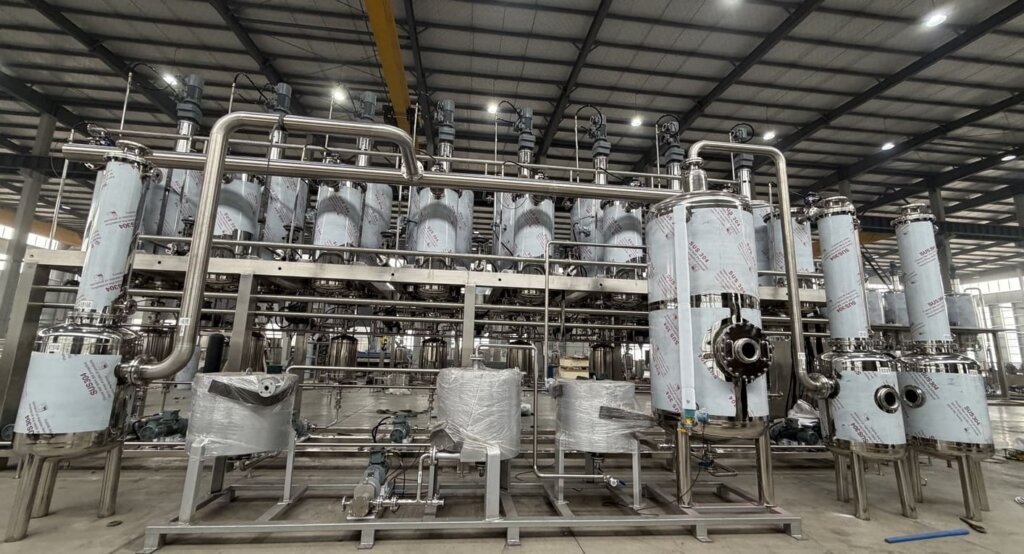

Marine Deep‑Sea Fish Oil Refinement & Omega‑3 Concentration

Integrated routes from crude oil to high‑purity concentrates. Modules include degumming/neutralization, bleaching, winterization, re‑esterification (TG↔EE↔rTG), short‑path molecular distillation (SPDU, multi‑stage), urea complexation, long‑path rectification/fractionation, micro‑deodorization, and HPCC finishing.

  • Typical objectives: food‑ and nutraceutical‑grade 46/38 and 50:20; EE or TG ~70–90% concentrates; EPA‑ or DHA‑biased cuts; contaminant reduction within GOED/IFOS expectations; odor removal and oxidative stability improvement.
  • Analytics: GC‑FID (FAME/EE), HPLC (distribution), peroxide/anisidine (TOTOX), residual solvents, contaminants (where requested), sensory panel.

  • Origin/species (anchovy/sardine/algal), harvest/lot/date, antioxidant system.
  • Initial metrics: PV, AV, TOTOX, FFA (% as oleic), moisture, metals (if available).
  • Form: TG/EE/rTG; viscosity @ 25 °C; color/odor notes.
  • Targets: grade (food/nutra/API‑adjacent), EPA/DHA targets (e.g., 50:20, 70%, 90%), odor threshold, contaminant goals (GOED/IFOS guidance), solvent residual limits.
  • Sample quantity:
    • Bench: 50–100g oil + process aids/solvents as applicable.
    • Pilot: 10–150 kg typical (module‑dependent).

Send Your GC Profifle For Verify
Send Your Sample Oil for Testing

The Standard Workflow

sample testing make your dehydration process guaranteed

  1. Intake & NDA

    We execute a mutual NDA and open a shared intake checklist.

  2. Feasibility consultation

    Define feed specs, target product, utilities, compliance boundaries (food/nutra/API‑adjacent), and any site constraints.

  3. Sample & Data Package

    You ship representative samples with required documentation. We verify identity, safety, and stability on receipt.

  4. Bench‑Scale Screening

    Rapid parameter sweeps to map feasibility, select operating windows, and estimate flux/yield/quality. Outputs: a shortlist of operating points for pilot runs.

  5. Pilot Confirmation Runs

    Run selected conditions on scalable rigs to confirm mass balance, energy draw, cut points, and stability. Capture steady‑state behavior and dynamic responses.

  6. Design Verification (PDV) & Scale‑up Model

    We correlate bench/pilot results with scale‑up models (e.g., LMH vs. activity for membranes; SPDU heat/mass transfer vs. residence time/vacuum; urea crystallization kinetics vs. cooling profile). We draft PFD, preliminary P&ID, equipment list, and utility summary.

  7. Report & Proposal

    You receive a formal data package with recommendations, risks, and an aligned estimate for your required throughput.
