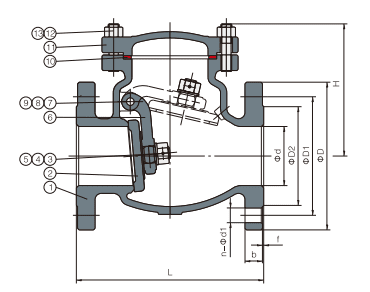

SWING CHECK VALVE FLANGE ENDANSI CLASS 150/300 JIS 10/20K

Features

1/2-12(DN15-DN300)

WP.: CLASS 150/300

W.T.425°C

Design:API6D/BS1868/ASME16.34

Flange dimension: JIS B2071/ASME 16.5

Face to face:JIS B2002/ASME16.10

Inspection & testing: JISB2003/API 598
