Omega-3 Fatty Acids Concentration Equipment

Industrial-scale molecular distillation is an advanced liquid-liquid separation and purification process, exploiting differences in component molecule boiling points. Executed within a high-vacuum environment, this method minimizes residence time and employs a heated surface to form a thin mixture film.

Notably, it excels in separating components with closely aligned boiling points, overcoming the limitations of traditional distillation.

Made To Measure Solution

Additional information

Concentration

15%~30%, 30%~50%, 50%~70%

Working Medium

As per process demand, biodiesel (fuel), CBD Oil, fish oil esters, food additives, Oil and Lipids, Pharmaceutical intermediates

Material heating method

Steam, Thermal Oil

Production Material

Stainless Steel 304, Stainless Steel 316, Stainless Steel 316L

Working Pressure

-0.1~1Pa, -0.1Pa, 1~5Pa, 10~100Pa, 100~1000Pa

Working Capacity

100~200Kg/Hr, 10000~20000kg/hr, 1200~1800kg/hr, 200~400kg/hr, 2000-10000kg/hr, 400~800kg/hr, 800~1200kg/hr, As Per Project Demand

Power (Input)

380V, 415V, 440V

Heating area

10㎡, 15㎡, 20㎡, 2㎡, 4㎡, 5㎡, 6㎡, 8㎡

Description

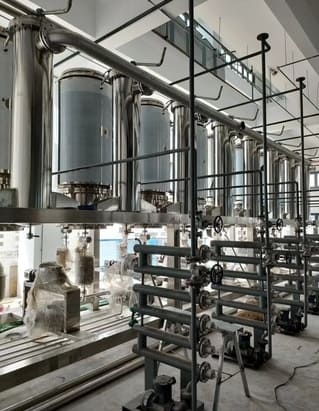

Customized Distillation Equipment Technology for marine fish oil fatty acids concentration process.

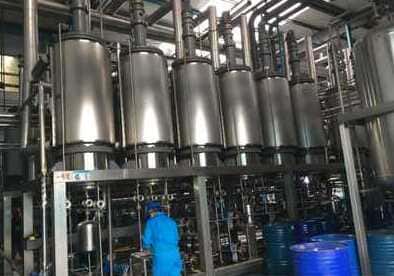

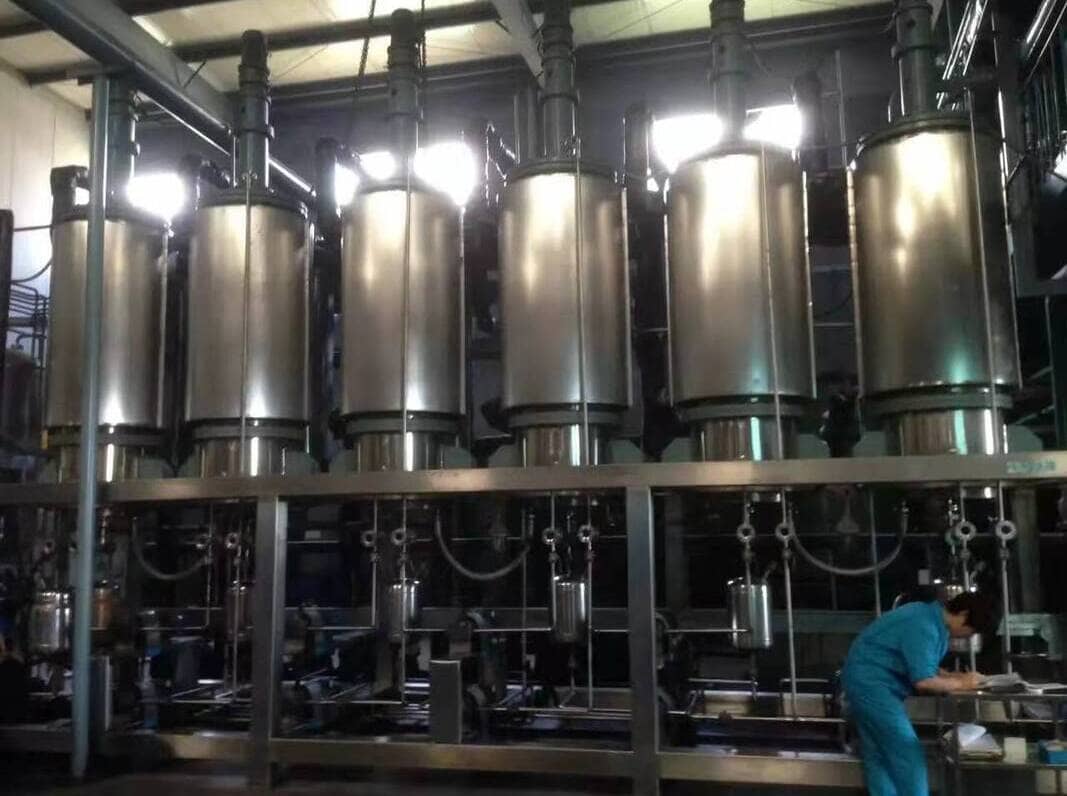

Industrial multi-stages molecular distillation equipment is especifically customized for fish oil concentration. It typically consists of several stages of distillation columns arranged in series. Each stage consists of a distiller with cold trap, a condenser, and aligning with vacuum group and control system.

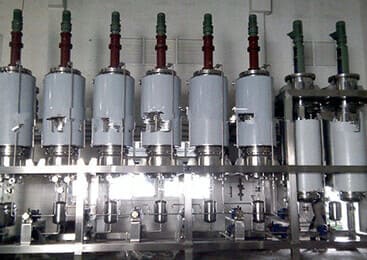

As a short-path distillation unit, it significantly reduces the gap between heating and condensing surfaces, enhancing separation efficiency while safeguarding against thermal degradation.

Molecular distillation hinges on precise control of temperature, pressure, and flow rates to attain optimal separation and purity, epitomizing a superior separation philosophy.

Explore details information by clicking here.



Integrated Solvent Free Process From Pilot Plant to Commercial Industrial Scale Solution:
  • Falling-Film / Centrifugal / Rotary and Wiped-Film Patterns
  • Made to Measure for separation, purification, decolorization, concentration process
  • Applicable for Light component removal, desolventization, dehydration, deodorization applications.



The basic condition for short path distillation process:
  • the free path of light molecular matter is the distance of heating and condensing surface
  • light molecular matter can reach inner condenser and get captured.
  • the heavy molecular matter has shorter free path than the distance from heating and condensing surface.
  • heavy molecular matter can not reach inner condenser surface
  • the separation can be realized only when light molecular matter is captured by condenser.



Additional information

Concentration

15%~30%, 30%~50%, 50%~70%

Working Medium

As per process demand, biodiesel (fuel), CBD Oil, fish oil esters, food additives, Oil and Lipids, Pharmaceutical intermediates

Material heating method

Steam, Thermal Oil

Production Material

Stainless Steel 304, Stainless Steel 316, Stainless Steel 316L

Working Pressure

-0.1~1Pa, -0.1Pa, 1~5Pa, 10~100Pa, 100~1000Pa

Working Capacity

100~200Kg/Hr, 10000~20000kg/hr, 1200~1800kg/hr, 200~400kg/hr, 2000-10000kg/hr, 400~800kg/hr, 800~1200kg/hr, As Per Project Demand

Power (Input)

380V, 415V, 440V

Heating area

10㎡, 15㎡, 20㎡, 2㎡, 4㎡, 5㎡, 6㎡, 8㎡
