GLOBE VALVE FLANGE ENDGB PN16/40

Features

1/2~12(DN15-DN300)

W.P.: 1/2”-2”  PN40     2 – 1/2”  -12” PN16

WT.:425°C

Rising stem

Design:GB/T12235

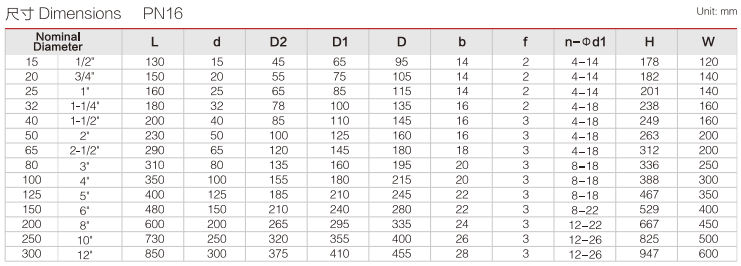

Flange dimension: JB/T79-1994,GB/T9113,3

Inspection & testing: GB/T 12235
