Comprehensive Fish Oil Deacidification (Deodorization) Solution
Key Design Principles
- Compliance Focus:
- We adhere to current national and local industry standards to guarantee regulatory compliance.
- Our solution is meticulously designed to meet or exceed all relevant quality and safety regulations.
- Efficiency and Simplification:
- Embracing the principles of meeting standards, achieving standard production, our solution optimizes the deacidification process for maximum efficiency.
- Streamlined workflows ensure a simplified production process without compromising on output quality.
- Energy Efficiency and Emissions Reduction:
- Our design integrates energy-efficient technologies to reduce environmental impact and operational costs.
- With a commitment to sustainability, our solution aligns with your goals for energy conservation and emissions reduction.
- Human-Centric Design:
- Safety and user-friendliness are paramount in our design philosophy.
- We prioritize the creation of a production environment that is both safe for operators and easy to navigate.
Overview of Deodorization Process
Vacuum Pump and Fatty Acid Collector Design
To achieve the highest yields and maintain an eco-friendly operation, our process incorporates cutting-edge technologies:
- Energy-Efficient Vacuum Pump:
- Utilizing a vacuum pumps group that is energy-efficient and environmentally friendly.
- Eliminating wastewater discharge and steam consumption, aligning with our commitment to sustainability.
- Fatty Acid Collector:
- Specifically designed to enhance the capture of fatty acids, minimizing their entry into the vacuum pump system.
- Effectively reducing the impact of fatty acids on the overall deodorization process.
Deodorization (Deacidification) Stage
This stage, tailored for processing deep-sea fish oil, employs a gas-stripping deacidification process.
Key features and benefits include:
- Negative Pressure Acid Stripping Process:
- Relying on negative pressure to induce the evaporation of free fatty acids, effectively removing them from the oil.
- Simultaneously eliminating odor compounds, raising the smoke point of the oil, and enhancing the flavor of the fish oil.
- Improvements in Stability and Quality:
- The deacidification process not only removes free fatty acids and odorous substances but also addresses peroxides, their decomposition products, thermosensitive pigments, and volatile decomposition products from protein in deteriorated oil materials.
- Enhances oil stability, color, and overall quality, ensuring the final product meets safety standards.
Steam Distillation (Vapor Stripping)
The core mechanism of our deodorization process involves steam distillation, also known as vapor stripping:
- Differential Volatility of Odor Compounds:
- Exploiting the difference in volatility between odor compounds and triglycerides in oil.
- Steam vapor passes through the oil, saturating with volatile odor compounds, which are then released based on their vapor pressure ratios.
- Efficient Odor Removal:
- Achieves thorough removal of odorous components, resulting in fish oil that meets safety standards and consumer preferences.
- The process ensures that the odor removal aligns with safety parameters.
Our commitment is not just to meet industry standards but to surpass them, providing you with a fish oil deacidification solution that excels in efficiency, environmental responsibility, and end-product quality.
Engage with Greatwall Process and Control for a transformative approach to fish oil processing.
Process Flow and Characteristics of Marine Fish Oil Deodorization
Basic Process Flow：
- Oil Transfer and Heating:
- Clear oil is extracted using a transfer pump and adjusted with a mass flow meter.
- Enters the heater to reach approximately 120-130°C before entering the vacuum drying deaerator.
- Vacuum Drying Deaerator:
- Residual moisture and air are removed from the oil inside the deaerator.
- Extracted by a shielded pump and undergoes heat exchange with deodorized oil from the deodorization tower through an oil-oil heat exchanger.
- Heating to Deacidification Tower:
- Further heating to 200–260°C (specific temperature determined by oil quality) using a thermal oil heater.
- Enters the deacidification (deodorization) tower.
- Deacidification Process in Tower:
- Under a vacuum working in the deodorization tower, undergoes approximately certain period of vacuum deacidification.
- Deodorized oil at the bottom of the tower is extracted by a shielded pump.
- Oil-Oil Heat Exchange:
- Heat exchange with clear oil through an oil-oil heat exchanger.
- Cooling and Filtration:
- Cooled to below 80°C through a water cooler, then directed to a polishing filter.
- Further cooled to around 45°C through a cooler before entering the deacidification and deodorization oil tank.
Process Characteristics
Design and Equipment Configuration
- High-Quality Deodorization:
- The process design and equipment configuration meet the requirements for producing high-quality deodorized fish oil.
- The production line is capable of producing fish oil or other plant oils that comply with national hygiene standards.
Importance of Deacidification (Deodorization)
- Critical Refining Stage:
- Deacidification (deodorization) is a crucial step in oil refining, directly impacting the quality indicators such as aroma, smoke point, free fatty acid content, and color of the finished oil.

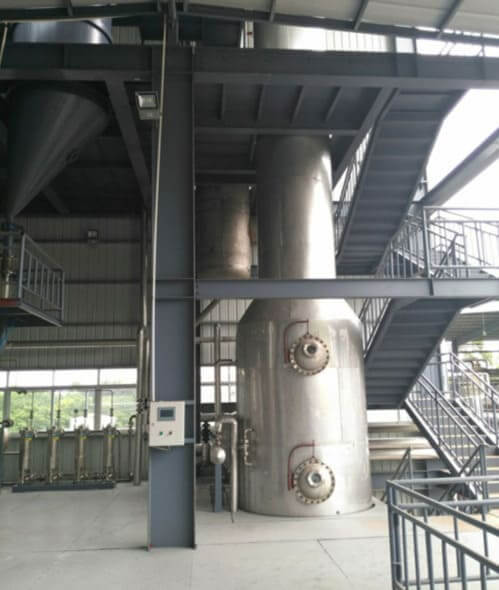

- Our YXT50-80 combination continuous de(acid)odorization tower is designed for physical deacidification tailored to fish oil, achieving capacities ranging from 10 to 300 tons/day in conventional refining production.
Energy-Efficient Design
- Combination Tower Design:
- The combined tower facilitates physical deacidification, optimizing production at high vacuum and steam agitation.
- Minimizes oil residence time at high temperatures, reducing energy consumption.
- Prevents localized overheating during de(acid)odorization, minimizing trans fatty acid content, improving oil quality, and enhancing taste.
Material Selection
- Quality Materials:
- Tower filling adopts SUS316L corrugated perforated plate filling, and other materials in contact with oil are SUS304.
- Connection pipes, valves, and equipment in the deodorization section are all made of high-quality stainless steel (SUS304).
Efficient Fatty Acid Capture
- High-Efficiency Fatty Acid Collector:
- Utilizes a stainless steel perforated plate filling for efficient fatty acid capture, ensuring effective recovery.
- Achieves heat exchange between cold and hot oil, promoting energy efficiency.
Engage with Greatwall Process and Control for a state-of-the-art deodorization solution that not only meets but exceeds industry standards, delivering high-quality, deodorized fish oil with exceptional efficiency and sustainability.
Service Offerings
Our commitment to your success goes beyond delivering equipment. We offer a comprehensive range of services to ensure a seamless integration of our solution into your fish oil refining processing facility.
- Customized Process Line Design:
- Tailored fish oil processing line design to meet your specific production requirements.
- A focus on flexibility to accommodate future scaling and process changes.
- Electrical Automation Design:
- State-of-the-art electrical automation design to enhance control and monitoring capabilities.
- Integration of cutting-edge technologies for precise process management.
- Installation and Commissioning Support:
- Our team oversees the installation of equipment, pipelines, and electrical systems with customer’s request.
- Thorough commissioning to guarantee the smooth operation of the entire production line.
- Comprehensive Training:
- Personnel training to ensure your team is proficient in operating and maintaining the equipment.
- Knowledge transfer sessions to empower your staff with in-depth understanding.
How to Engage with Greatwall Process and Control
- Consultation:
- Reach out to our dedicated pre-sales team for a detailed consultation on your fish oil deacidification needs. Click here.
- Discuss your production goals, specific requirements, and any unique considerations.
- Proposal Presentation:
- Receive a detailed proposal outlining the customized solution, including equipment specifications and process design.
- Clear explanations of how our solution aligns with your goals and regulatory requirements.
- Collaborative Planning:
- Collaborate with our experts to fine-tune the proposed solution based on your feedback and insights.
- Ensure seamless integration with your existing processes and infrastructure.
- Implementation and Support:
- Experience a smooth implementation phase with our support throughout installation, commissioning, and initial production runs.
- Ongoing support for maintenance, troubleshooting, and any future upgrades.
Partner with Greatwall Process and Control for a cutting-edge fish oil deacidification solution that not only meets standards but elevates your refining production capabilities.
We are committed to your success and the success of your fish oil processing plant.
To ensure we provide you with the most tailored solution, here are some key aspects to consider when discussing your requirements:
- Production Capacity:
- Please specify the desired daily or hourly processing capacity for the fish oil deodorization equipment.
- Are there any anticipated changes in production volume that we should account for in the design?
- Deodorization Technology:
- Do you have any specific preferences regarding deodorization methods? (e.g., steam distillation, molecular distillation)
- Are there particular odor compounds or contaminants you aim to target during the deodorization process?
- Customization Needs:
- Are there specific features or customization requirements crucial for your plant’s workflow?
- Do you have any unique considerations, such as space constraints or integration with existing systems?
- Regulatory Compliance:
- Are there any industry or regulatory standards that the fish oil deodorization equipment must meet?
- Do you have specific certifications or compliance requirements for your operation?
- Operational Efficiency:
- What level of automation or control system integration are you looking for in the equipment?
- Are energy efficiency and sustainability factors you want to prioritize in the design?
- Maintenance and Support:
- What are your expectations regarding maintenance requirements and downtime?
- Do you have a preferred maintenance schedule, and what level of support do you anticipate needing?
- Testing and Validation:
- Are there specific testing or validation protocols that the equipment must undergo before installation?
- How do you typically handle the validation process for new equipment in your facility?
- Budget and Timeline:
- What is your budget range for the fish oil deodorization equipment?
- Do you have a specific timeframe for equipment delivery and installation?
Once you provide us with these details, we can create a comprehensive proposal outlining the ideal fish oil deodorization equipment solution for your plant. Looking forward to collaborating with you on this project and delivering a top-notch solution from Greatwall Process and Control.
